Universal Receiving Outlet

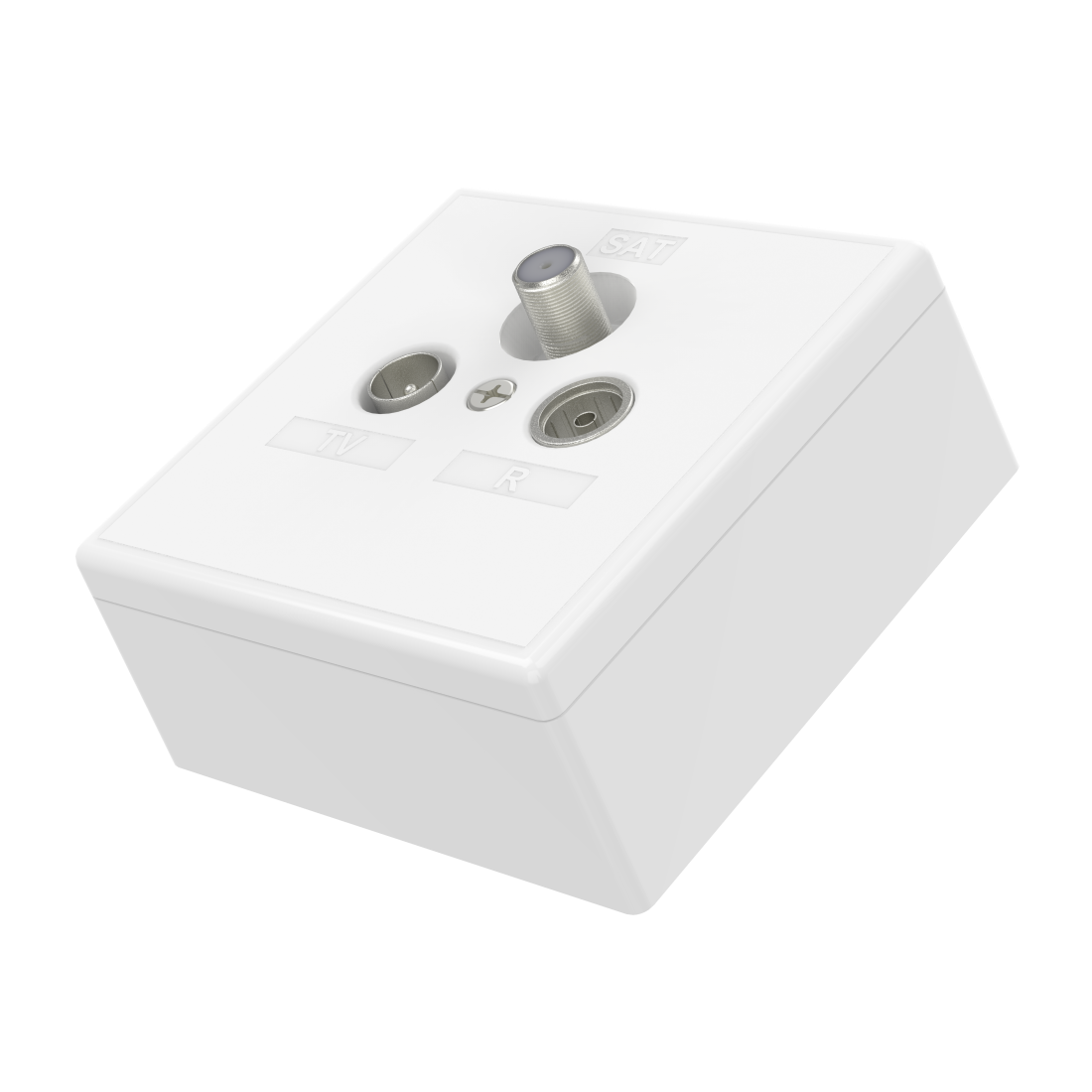

Hama "SKITU" Universal Antenna Socket, 0 dB Terminal Socket, 4 in 1

00305099

SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

4in1

Simultaneous use of SAT, cable TV, internet and telephone possible

Return path compatible

Return path compatible connection for interactive applications such as DSL via satellite

Triple play

TV, telephone and Internet (Triple) through a single line

Unicable compatible

Unicable compatible for use in single cable systems according to EN 50494

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour White
    Shade of colour Pure White
    Connectivity (Connection)
    Connection for TV + SAT + Radio + Telephone + Unicable
    Electrospecific Properties
    Connection Loss 0 dB
    Frequency Range 5 Mhz - 2200 Mhz
    Physical Properties
    Model With Cover and Frame
    Field of Application
    Usage Terminal Socket
  • More product information
    • SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable
    • Capable of receiving DVB-S/-C/-T
    • Multimedia-compatible with 5 to 65 MHz feedback channel (Internet/telephone)
    • The Internet signal is received at the TV socket
    • Diode-decoupled SAT connection
    • Extended F-socket (installation-friendly)
    • Suitable for covers compliant with German standards, e.g. for Bush + Jäger
    • Ideal for HDTV

      Technical data:
    • Frequency range: 5 to 2200 MHz

      With SAT connection: 950 to 2200 MHz
      Connection loss: <2dB

      bei TV-Anschluss: 109 bis 865 MHz;
    • Rückkanal: 5 bis 65 MHz
    • Anschlussdämpfung: < 2db

      bei Radio Anschluss: 87,5 bis 108 MHz
      Anschlussdämpfung: <4,5dB
    • Anschlüsse:
      F-Kupplung: SAT/>nicable
      IEC (coax socket): antenna/cable (Internet/telephone)
      IEC (coax plug): Radio
  • What's in the Box
    • 1 "SKITU" universal antenna socket
    • 1 surface-mounted frame
    • 1 cover plate
    • Mounting hardware
  • Note for Consumers

    For the simultaneous use of cable TV and the Internet/telephone, a data TV/distributor must be used.

  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
