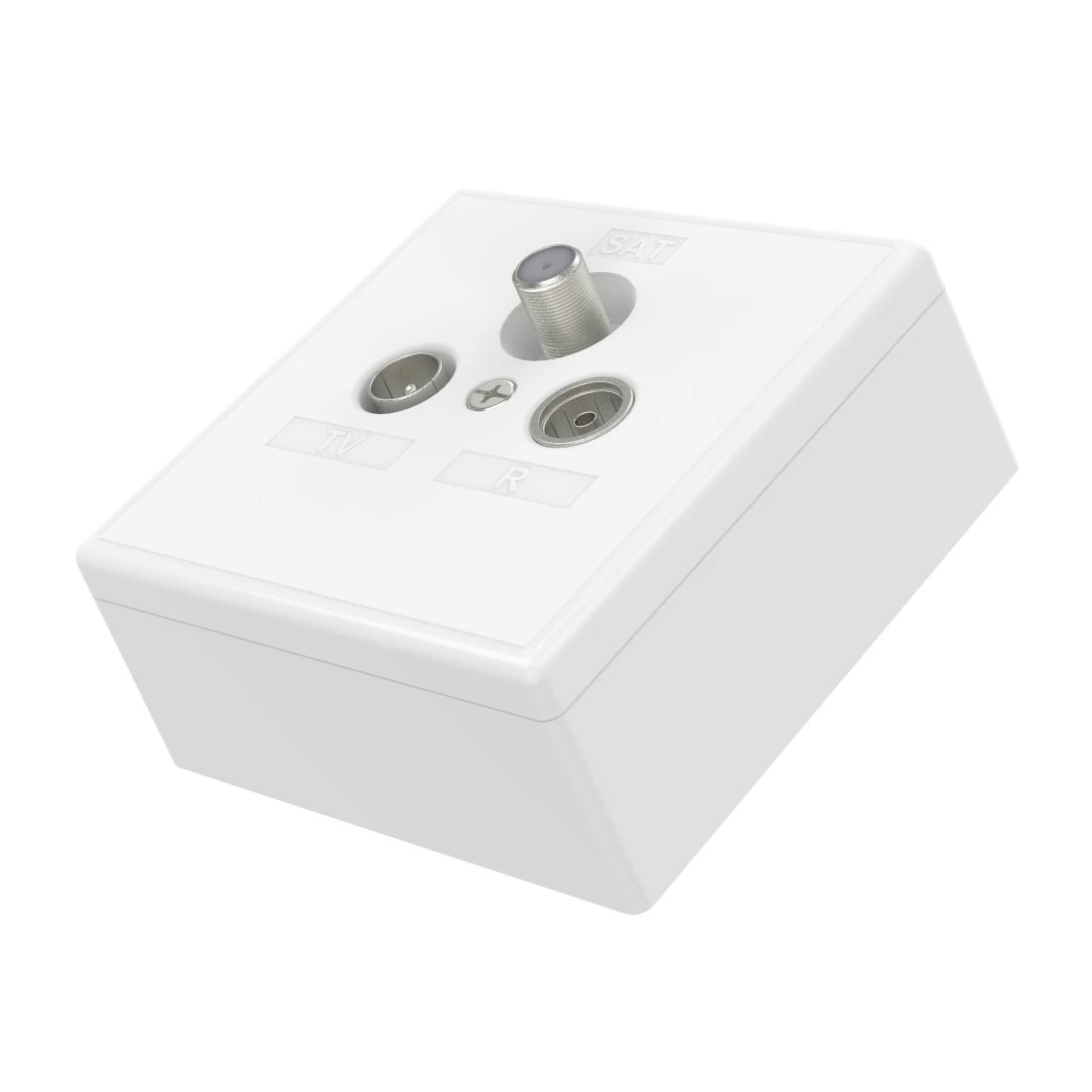

Hama "Skitu" Universal Antenna Socket, Transmission Socket, 10 dB, 4 in 1

00205355

SAT / antenna transmission socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to receive SAT/cable/Internet/telephone/Unicable

Price on demand

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

4in1

Simultaneous use of SAT, cable TV, internet and telephone possible

Return path compatible

Connector capable of operating in the return channel for interactive applications such as internet or telephone via cable modem

Triple play

TV, telephone and Internet (Triple) through a single line

Unicable compatible

Unicable compatible for use in single cable systems according to EN 50494

Technical Specs

Design (Colour, Pattern, Motif, Series)

Colour White

Productline Essential Line

Shade of colour Pure White

Connectivity (Connection)

Connection for TV + SAT + Radio + Telephone + Unicable

Electrospecific Properties

Connection Loss 10 dB

Frequency Range 5 Mhz - 2200 Mhz

Physical Properties

Model With Cover and Frame

Size & Weight

Height 39 mm

Length 68 mm

Width 68 mm

Field of Application

Usage Through-Way Socket
More product information
- SAT / antenna transmission socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to receive SAT/cable/Internet/telephone/Unicable
- Capable of receiving DVB-S/-C/-T
- Multimedia-compatible with 5 to 65 MHz feedback channel (Internet/telephone)
- The Internet signal is received at the TV socket
- Diode-decoupled SAT connection
- Extended F-socket (installation-friendly)
- Suitable for covers compliant with German standards, e.g. for Bush + Jäger
- Ideal for HDTV

  Technical data:
- Frequency range: 5 to 2,200 MHz

  With SAT connection: 950 to 2,200 MHz
- Connection loss: 10 dB/+-1.5 dB
- SAT transmission loss <3dB

  bei TV-Anschluss: 109 bis 865 MHz
- Rückkanal: 5 bis 65 MHz
- Anschlussdämpfung: 12dB/>-1.0 dB
- Transmission loss: <2dB

  bei Radio-Anschluss: 87,5 bis 108 MHz
- Anschlussdämpfung: 12dB/>1.5 dB
- Transmission loss: <2dB
- Anschlüsse:
  F-Kupplung: SAT/>nicable
  IEC (coax plug): antenna/cable (Internet/telephone)
  IEC (coax socket): Radio
What's in the Box
- 1 "Skitu" universal antenna socket
- 1 surface-mounted frame
- 1 cover plate
- Mounting hardware
