Universal Receiving Outlet

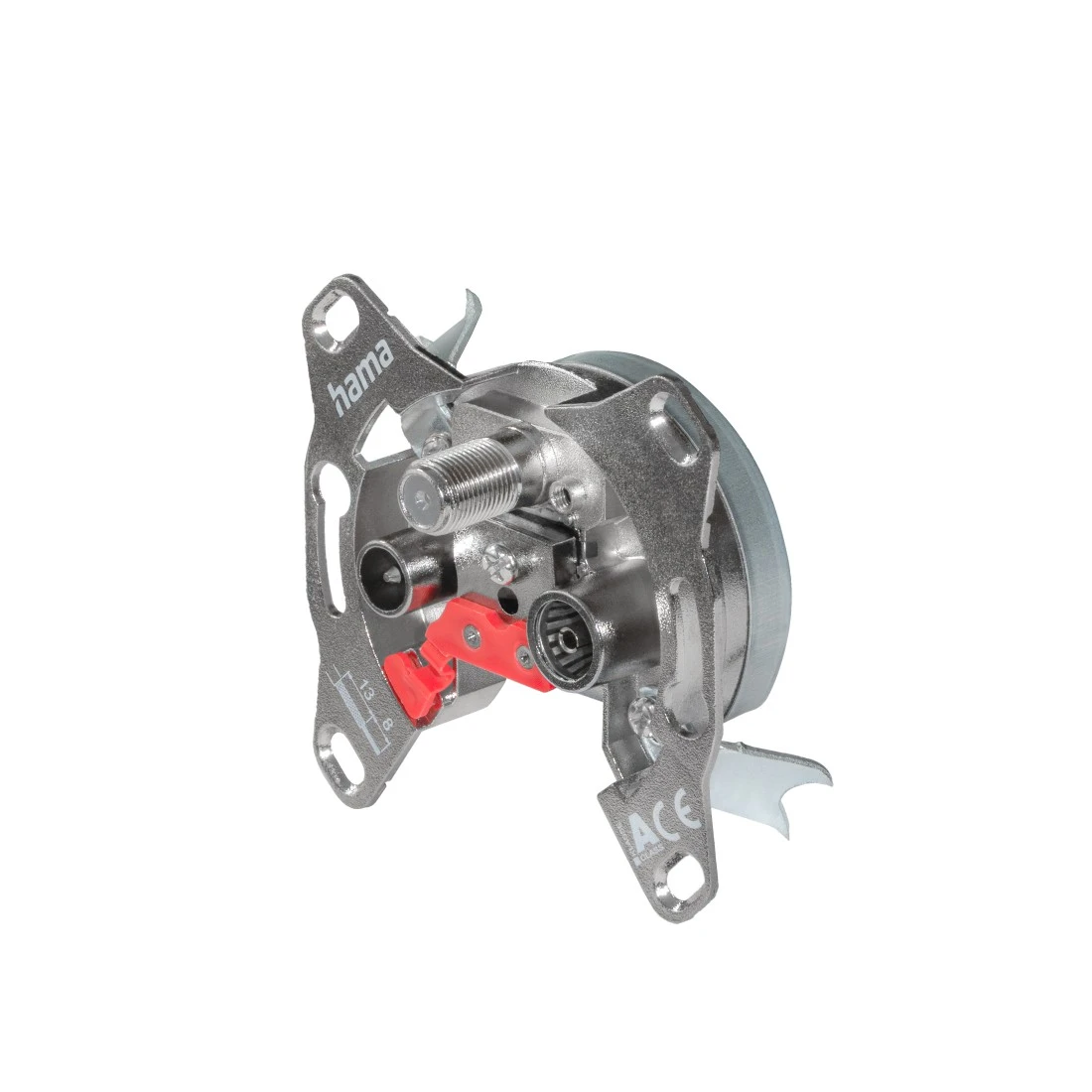

Hama SAT / Antenna Terminal Socket, 0 dB, 4-in-1

00205316

SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

4in1

Simultaneous use of SAT, cable TV, internet and telephone possible

Return path compatible

Connector capable of operating in the return channel for interactive applications such as internet or telephone via cable modem

Triple play

TV, telephone and Internet (Triple) through a single line

Unicable compatible

Unicable compatible for use in single cable systems according to EN 50494

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour Silver
    Productline Essential Line
    Connectivity (Connection)
    Connection for TV + SAT + Radio + Telephone + Unicable
    Electrospecific Properties
    Connection Loss 0 dB
    Frequency Range 5 Mhz - 2200 Mhz
    Physical Properties
    Material Die-cast housing
    Model Without cover and frame
    Field of Application
    Usage Terminal Socket
  • More product information
    • SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable
    • Capable of receiving DVB-S/-C/-T
    • Multimedia-compatible with 5 to 65 MHz feedback channel (Internet/telephone)
    • The Internet signal is received at the TV socket
    • Diode-decoupled SAT connection
    • Extended F-socket (installation-friendly)
    • Suitable for covers compliant with German standards, e.g. for Bush + Jäger
    • Ideal for HDTV

      Technical data:
    • Frequency range: 5 to 2,200 MHz

      With SAT connection: 950 to 2,200 MHz
    • Connection loss: < 2 dB

      With TV connection: 109 to 865 MHz;
    • Return channel: 5 to 65 MHz
    • Connection loss: < 2db

      With radio connection: 87.5 to 108 MHz
    • Connection loss: < 4.5 dB
    • Connections:
      F socket: SAT/Unicable
      IEC (coax socket): antenna/cable (Internet/telephone)
      IEC (coax plug): Radio
  • What's in the Box
    • 1 SAT / antenna terminal socket
  • Note for Consumers

    For the simultaneous use of cable TV and the Internet/telephone, a data TV/distributor must be used.

  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
