Docking Station

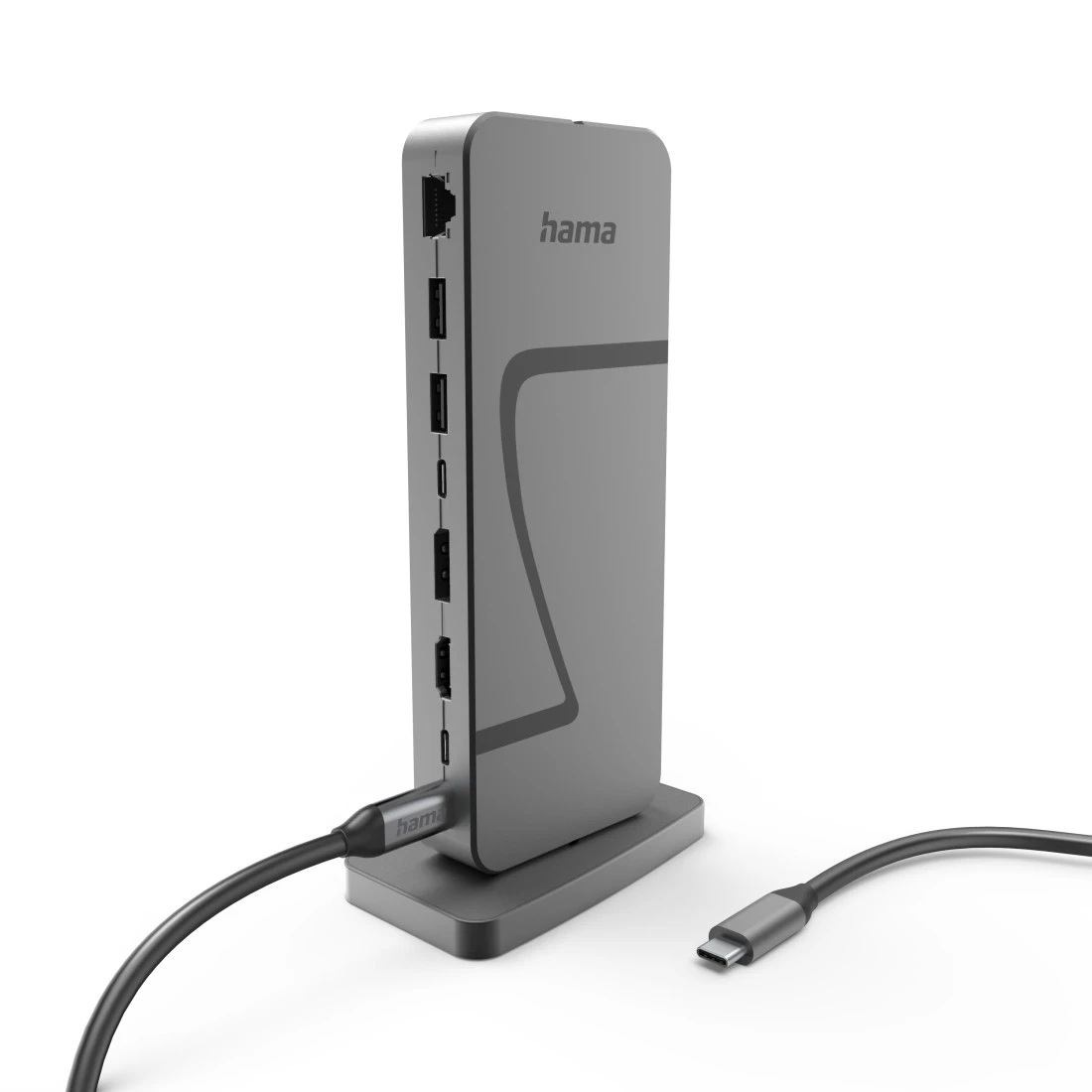

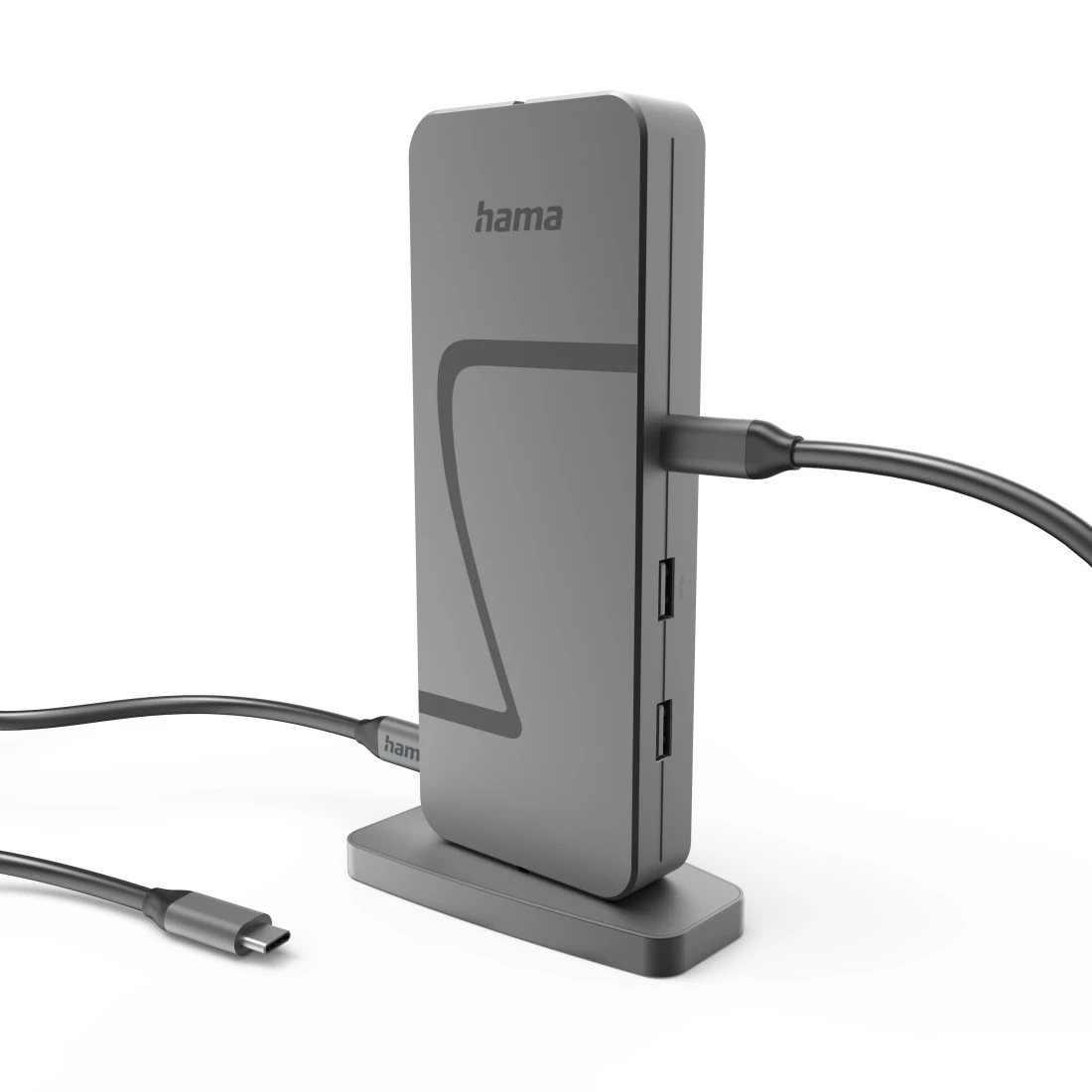

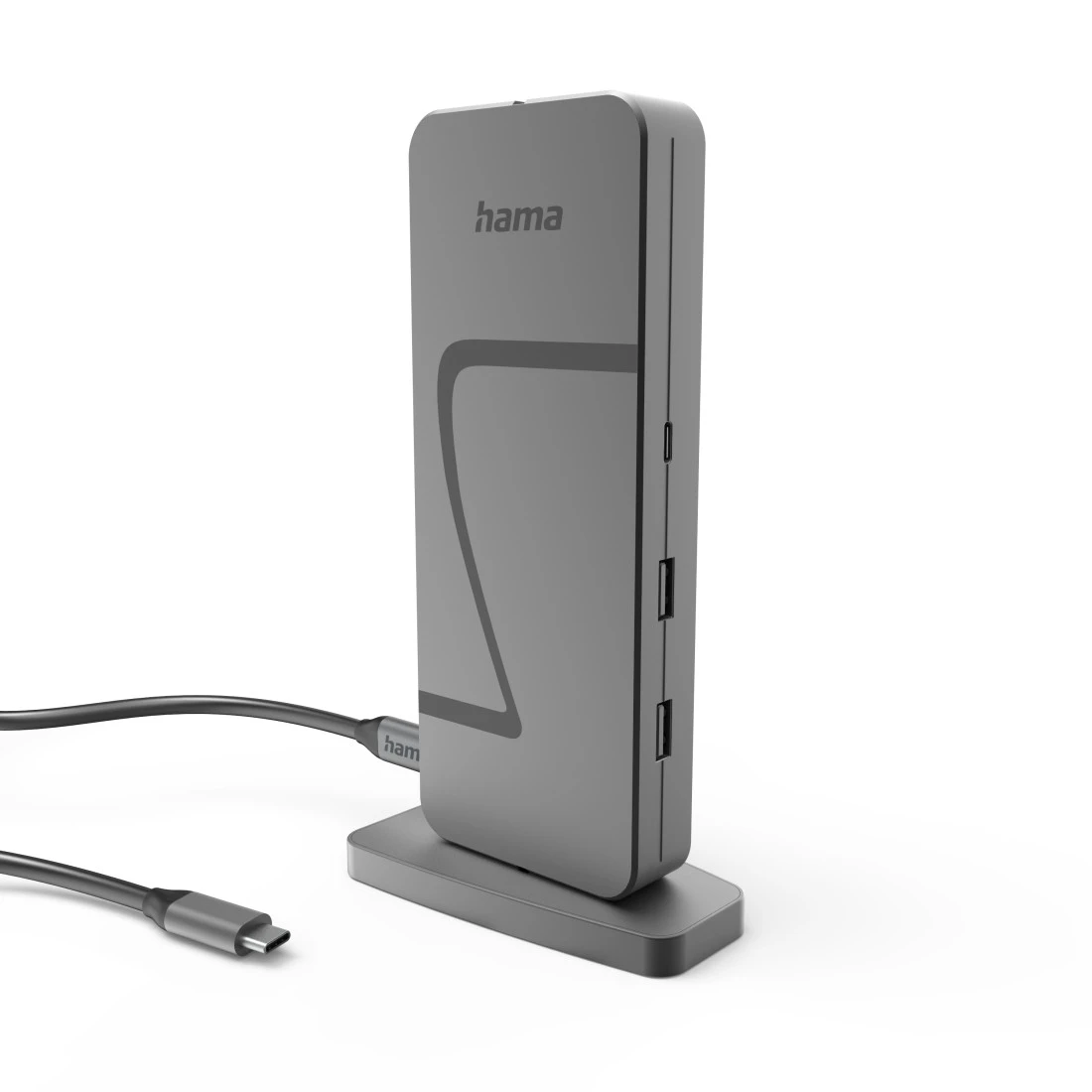

Hama “Connect2Office Speed” USB4 Docking Station, USB-C, PD, 40 Gbit / s, 10 Ports

00200200

USB-C hub with 10 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Super speed Plus data transfer

Super speed Plus data transfer rates of up to 10 Gbps

USB-C charging + data

USB-C socket supports data transfer and charging function (USB-PD)

Ultra HD – 8K

For perfect, high-resolution ultra-HD cinema quality with 7680x4320 (8K) pixels

Multi-stream transport for additional monitors

With MST (Multi-Stream Transport), you can connect three additional monitors to a notebook, for example, and use all four screens at the same time with different content

Aluminium surface

High-quality and sturdy aluminium housing with a sophisticated finish

Greater distance between sockets

Great distance between sockets makes it easier to plug in wider USB plugs/dongles

Optimum kink protection

Flexible materials guarantee optimum kink protection and prevent cable breakage

Excellent transmission quality

High-quality materials and workmanship guarantee excellent transmission quality

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour Grey
    Productline Essential Line
    Shade of colour Anthracite
    Quality
    Quality Essential
    Connectivity (Connection)
    Connection USB-C-Connector
    Connection Cable Removeable
    Connection Details 1x DisplayPort / DP 1.4 / max. 8K@30Hz/1x HDMI(TM) / High Speed HDMI(TM) / max. 8K@30Hz/1x LAN/Ethernet / max. 2.5 Gbit/s/1x USB-C / Power-Delivery / max. 5-28V - 5 A - 140 W/1x USB-C / USB4 / DP AltMode 8K@30Hz / Data max 10 Gbit/s/1x USB-C / USB 3.2 Gen2 / max. 10 Gbit/s/2x USB-A / USB 2.0 / max. 480 Mbit/s/2x USB-A / USB 3.2 Gen2 / max. 10 Gbit/s
    USB Standard USB-3.2 Gen 1
    Electrospecific Properties
    Charge Technology Power Delivery
    Max. Resolution 4k (4096 x 2160)
    Maximum Connected Load 140 W
    Network Speed 10/100/1000/2500 Mbps
    Physical Properties
    Number of Connections 10
    Type USB-C Docking-Station
    Size & Weight
    Cable Length 0.5 m
    Depth (Body) 6,5 cm
    Height (Body) 2 cm
    Width (Body) 16.4 cm
    Energy
    Power Supply USB Connection
  • More product information
    • USB-C hub with 10 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug
    • Connection to the notebook via USB-4 connection - Enhanced Super Speed Plus data transfer at up to 40 Gbit/s
    • Sockets on the front allow the easy and convenient connection of USB devices
    • Supports use in a horizontal and vertical position
    • Stable base for secure, space-saving and vertical / perpendicular positioning
    • Rubberised feet for a secure stand without slipping
    • Plug & Play, no manual software / driver installation required
    • Compatible with Thunderbolt 3/4/5 (lightning symbol)
    • Power supply via USB

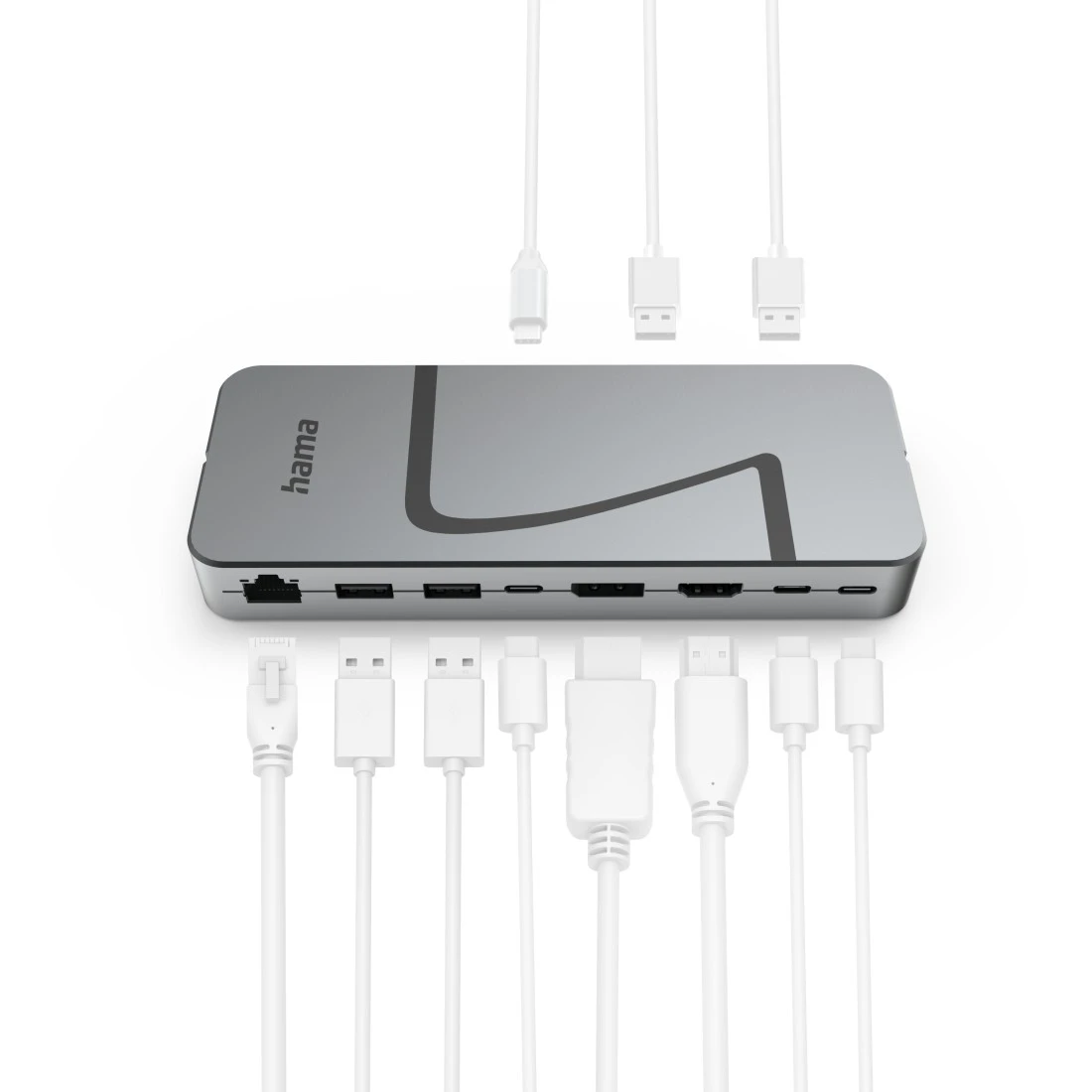

      Connections:
    • 4 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
    • 1 x USB-C data: for e.g. external hard drive, USB stick, mouse, keyboard, printer
    • 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
    • 1 x USB-C display + data: for e.g. monitor, TV, projector, external hard drive, USB stick
    • 1 x HDMI™: for connection to an e.g. monitor, TV or projector
    • 1 x DisplayPort: for connection to an e.g. monitor, TV or projector
    • 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
  • What's in the Box
    • 1 “Connect2Office Speed” USB4 docking station

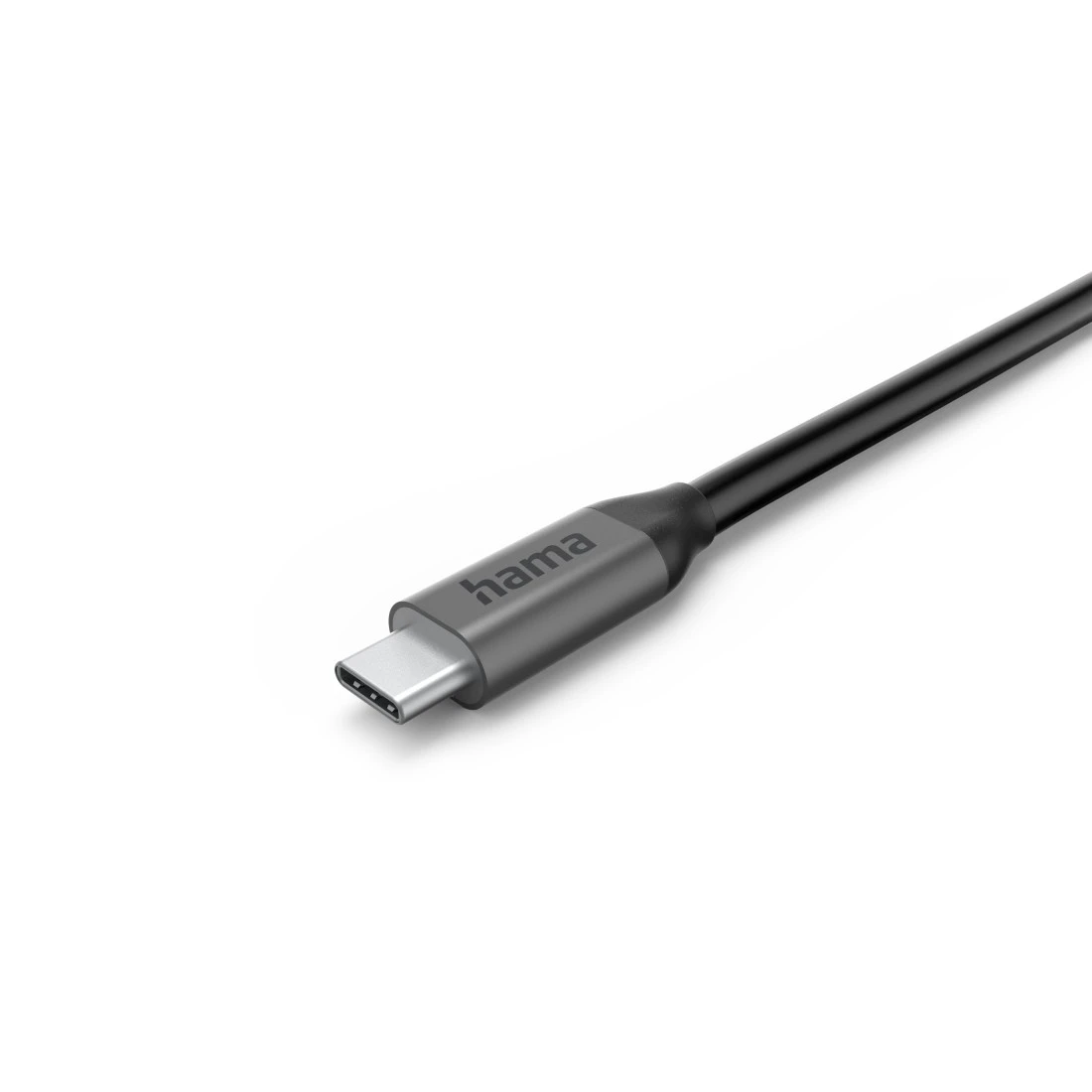

    • 1 USB-C cable
    • 1 holder
    • 1 operating manual
  • System Requirements
    • Operating system: Windows 11/10 and Mac OS 10.8 upwards

      To use the charging function over USB-C, the device must support USB Power Delivery (USB PD) or Thunderbolt 3/4/5.
      To use the monitor function over HDMI™ or DisplayPort, the device must support DisplayPort Alternate Mode (DP Alt Mode), Thunderbolt 3/4/5 or USB4.
      The MST function over HDMI™ or DisplayPort works only in connection with current Microsoft Windows operating systems.
  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
