Docking Station
Hama "Connect2Office Basic V2" USB-C Docking Station, Feet, 9 Ports
00200145

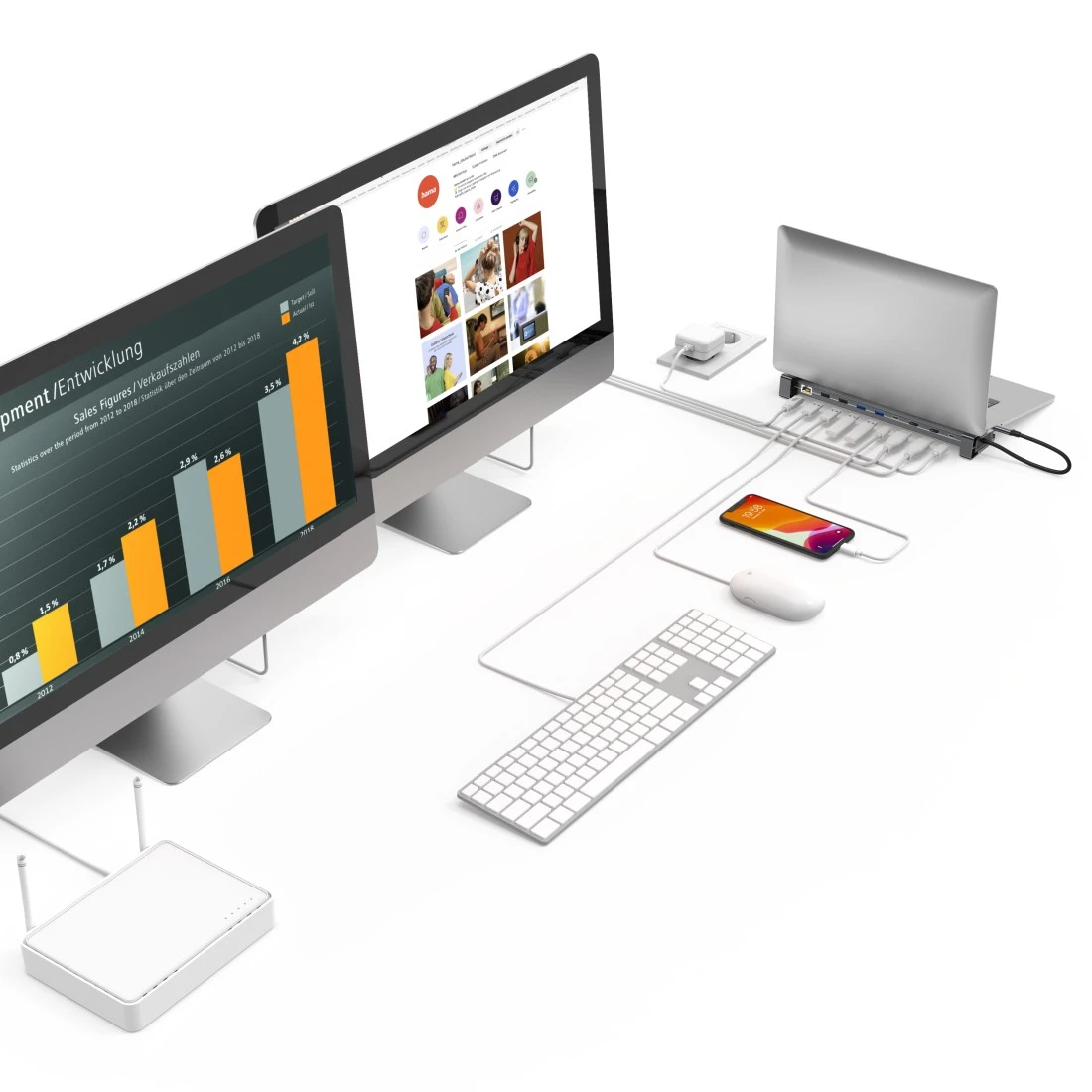

USB-C hub with 9 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug
Price on demand
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Super speed data transfer
Super speed data transfer rates of up to 5 Gbps
USB-C charging + data
USB-C socket supports USB Power Delivery (USB PD) and rapid data transfer
Ultra HD – 4K
For perfect, high-resolution ultra-HD cinema quality with 4096x2160 (4K) pixels
Multi-stream transport for additional monitors

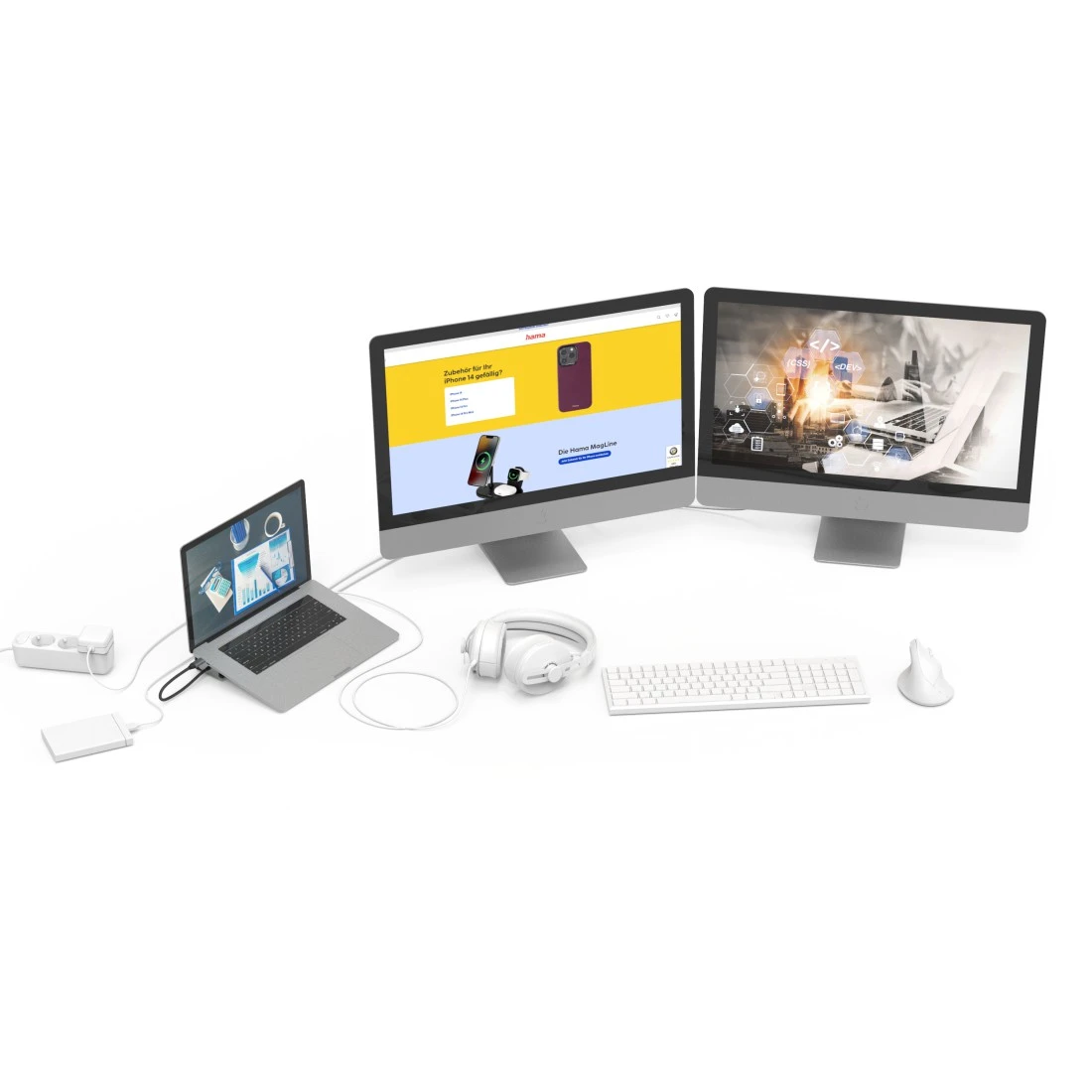

With MST (Multi-Stream Transport), you can connect two additional monitors to a notebook, for example, and use all three screens at the same time with different content
Gigabit data transfer
Gigabit Ethernet data transfer at up to 1 Gbps
Convenient cable management

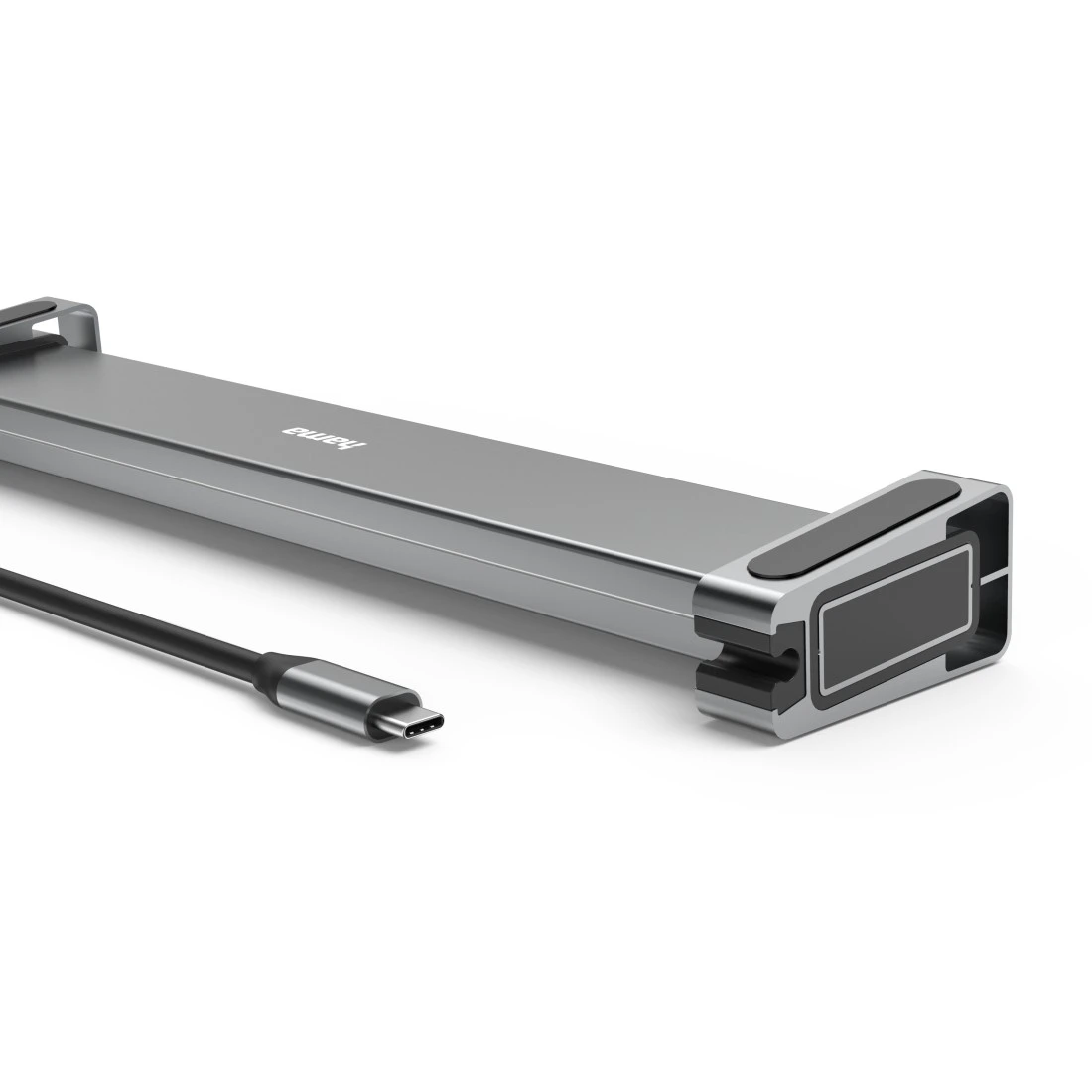

Convenient cable management thanks to handy holder for the connecting cable
Aluminium surface
High-quality and sturdy aluminium housing with a sophisticated finish
Greater distance between sockets
Great distance between sockets makes it easier to plug in wider USB plugs/dongles
Optimum kink protection
Flexible materials guarantee optimum kink protection and prevent cable breakage
Excellent transmission quality
High-quality materials and workmanship guarantee excellent transmission quality
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour Grey Productline Essential Line Shade of colour Anthracite Quality Quality Essential Connectivity (Connection) Connection USB-C-plug Connection Cable Integrated Connection Details 1x LAN/Ethernet / Gigabit / max. 1 Gbit/s/1x USB-C / Power-Delivery / max. 5-20 V - 5 A - 100 W/1x USB-C / USB 3.2 Gen1 / max. 5 Gbit/s/2x HDMI™ / High Speed HDMI™ / max. 4K@60 Hz/2x USB-A / USB 2.0 / max. 480 Mbit/s/2x USB-A / USB 3.2 Gen1 / max. 5 Gbit/s USB Standard USB-3.2 Gen 1 Electrospecific Properties Charge Technology Power Delivery Max. Resolution 4k (4096 x 2160) Maximum Connected Load 100 W Network Speed 10/100/1000 Mbps Physical Properties Number of Connections 9 Special Feature Cablemanagement Type USB-C Docking-Station Size & Weight Cable Length 0.2 m Depth (Body) 6 cm Height (Body) 2.94 cm Width (Body) 26.4 cm -
More product information
- USB-C hub with 9 connections when slots are in short supply (or are to be extended) on a PC, notebook, MacBook or tablet, or if multiple devices are to be connected / disconnected centrally via a single plug

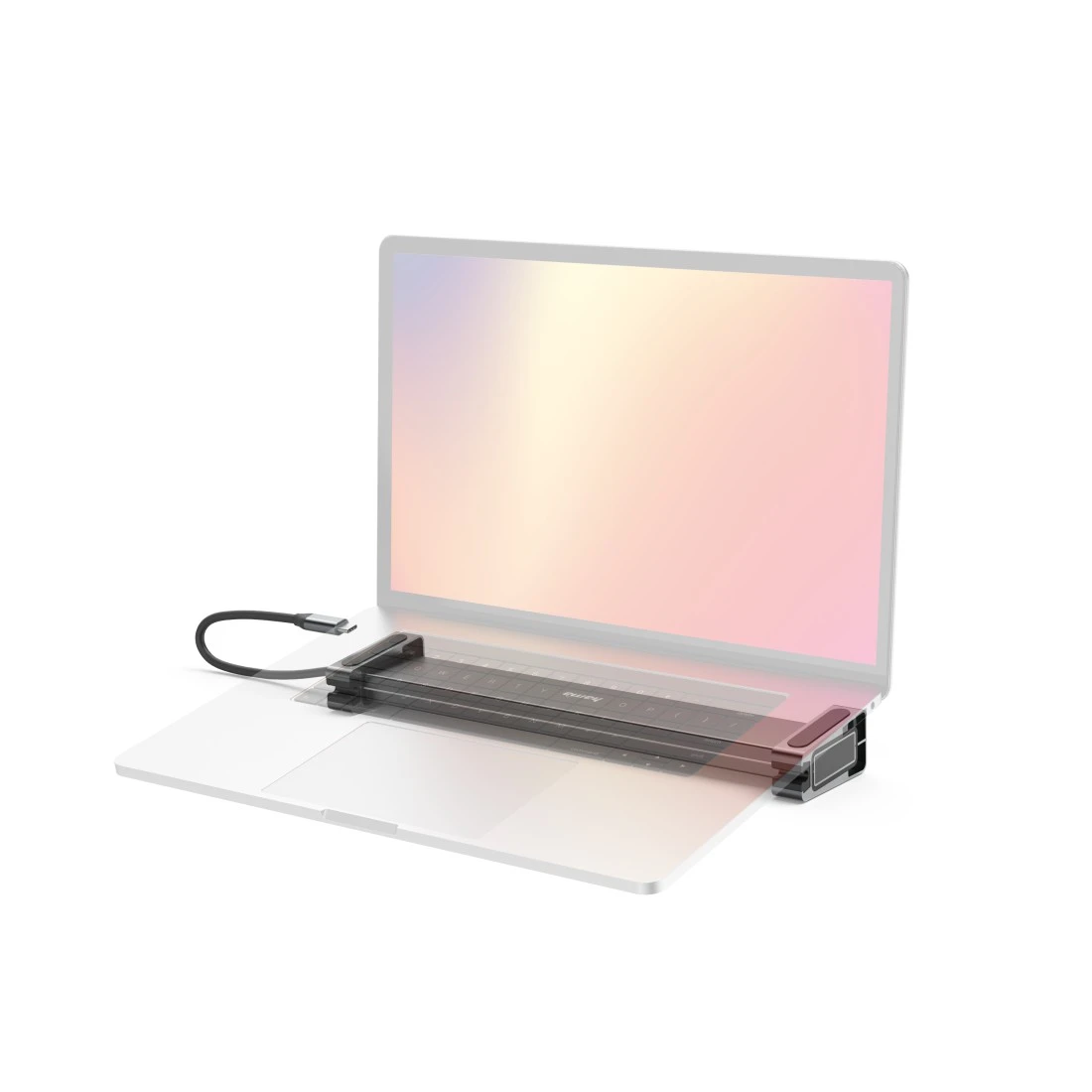

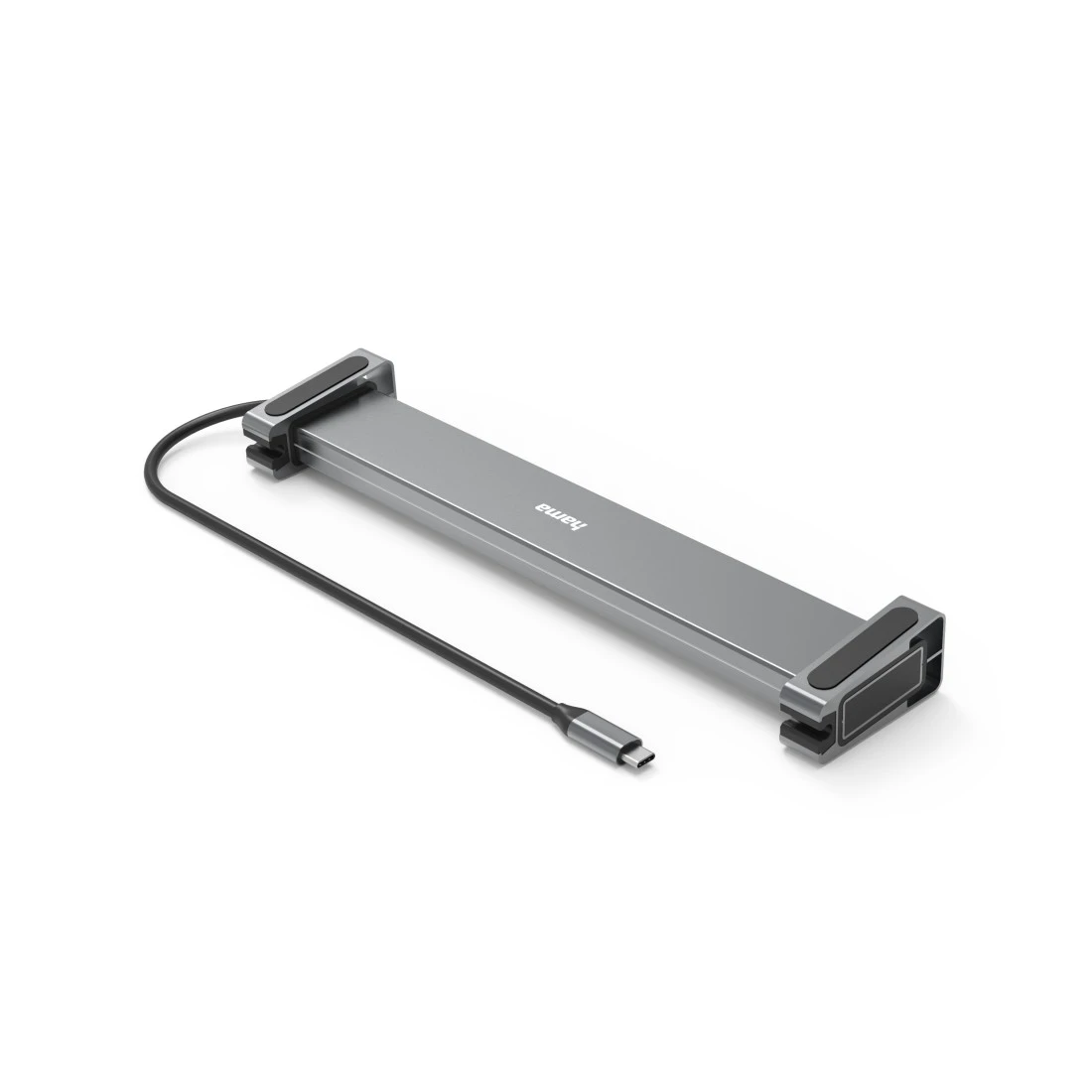

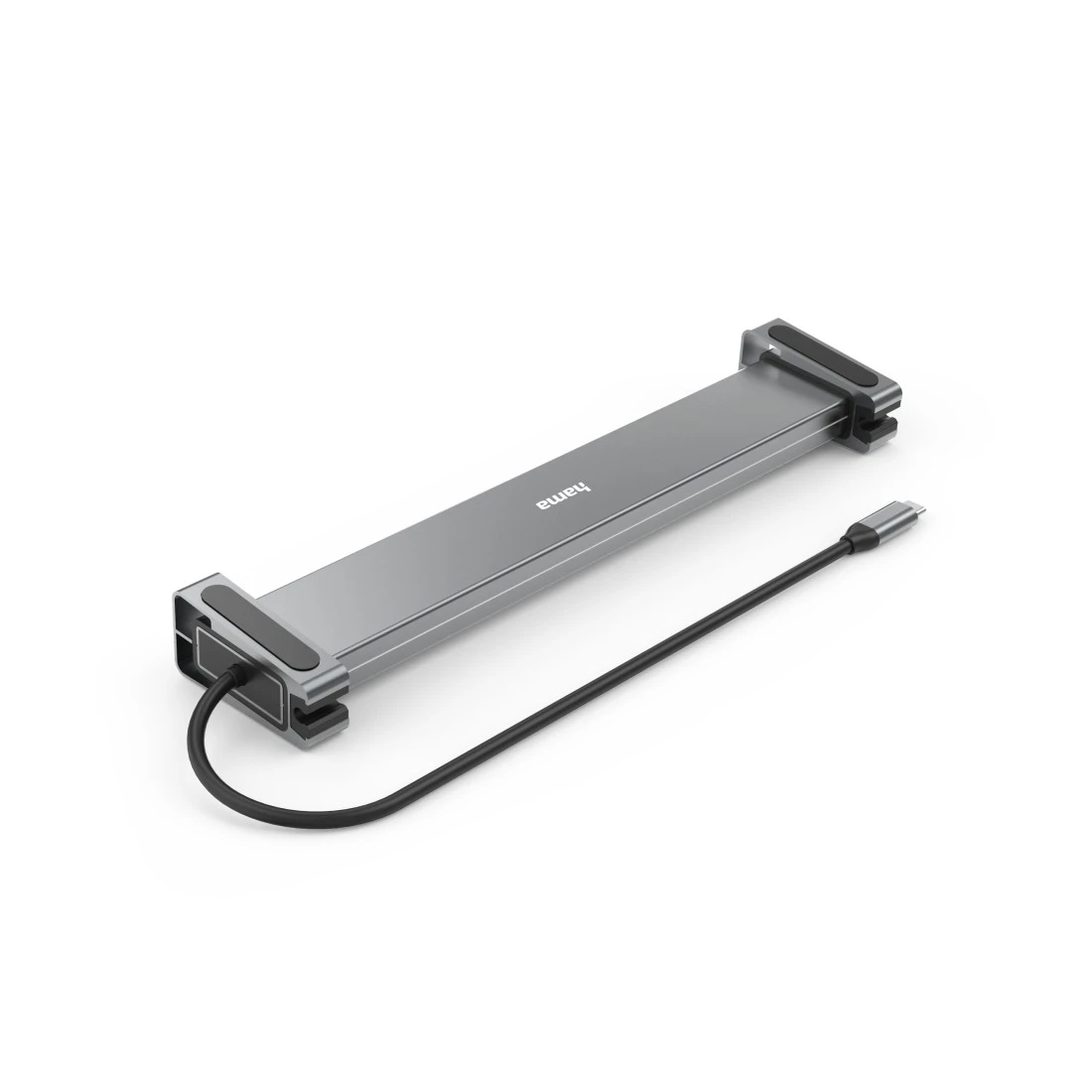

- Removable feet for space-saving operation or transport
- Rubberised feet for a secure stand without slipping
- Plug & Play, no manual software / driver installation required
- Compatible with Thunderbolt 3/4 (lightning symbol)
- Power supply via USB

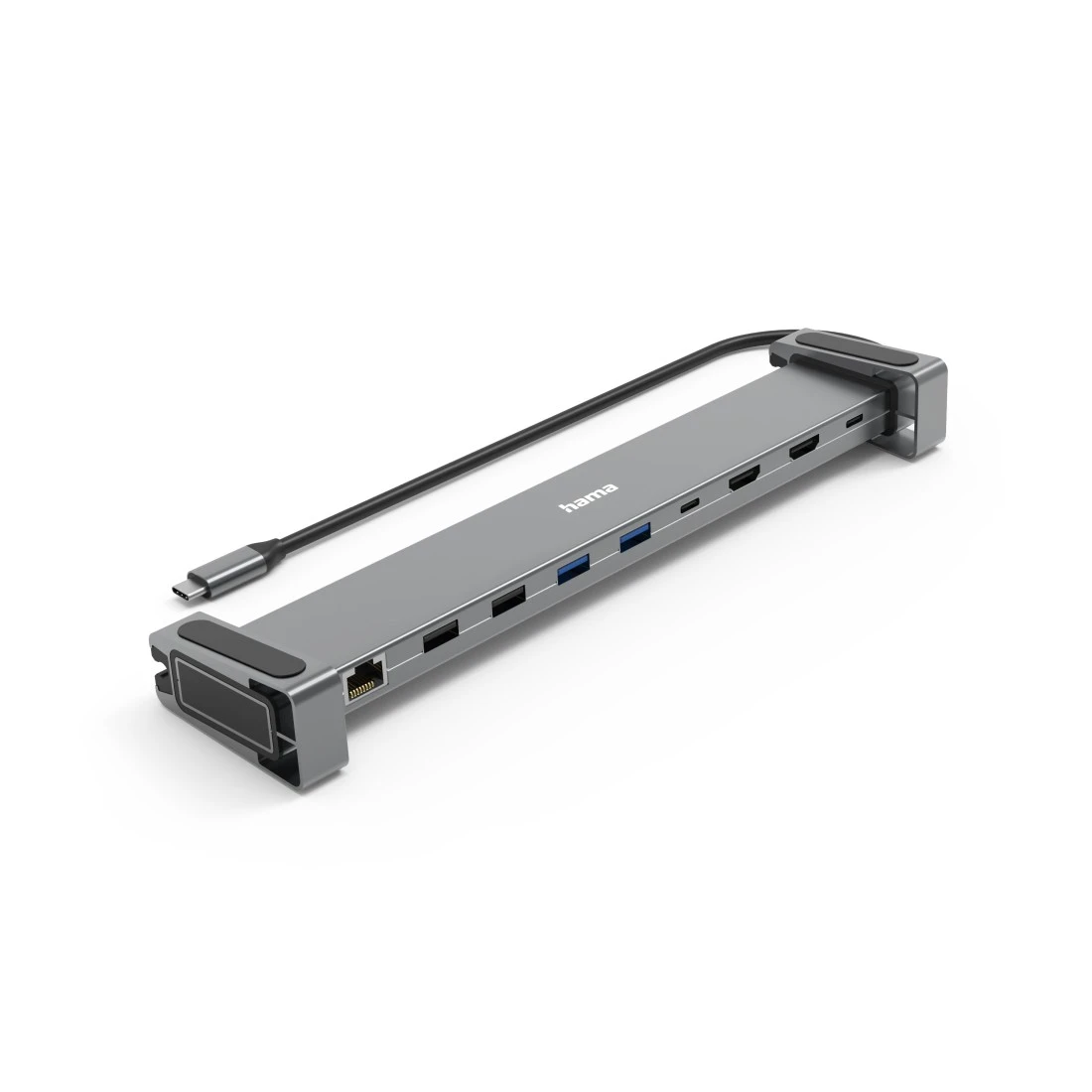

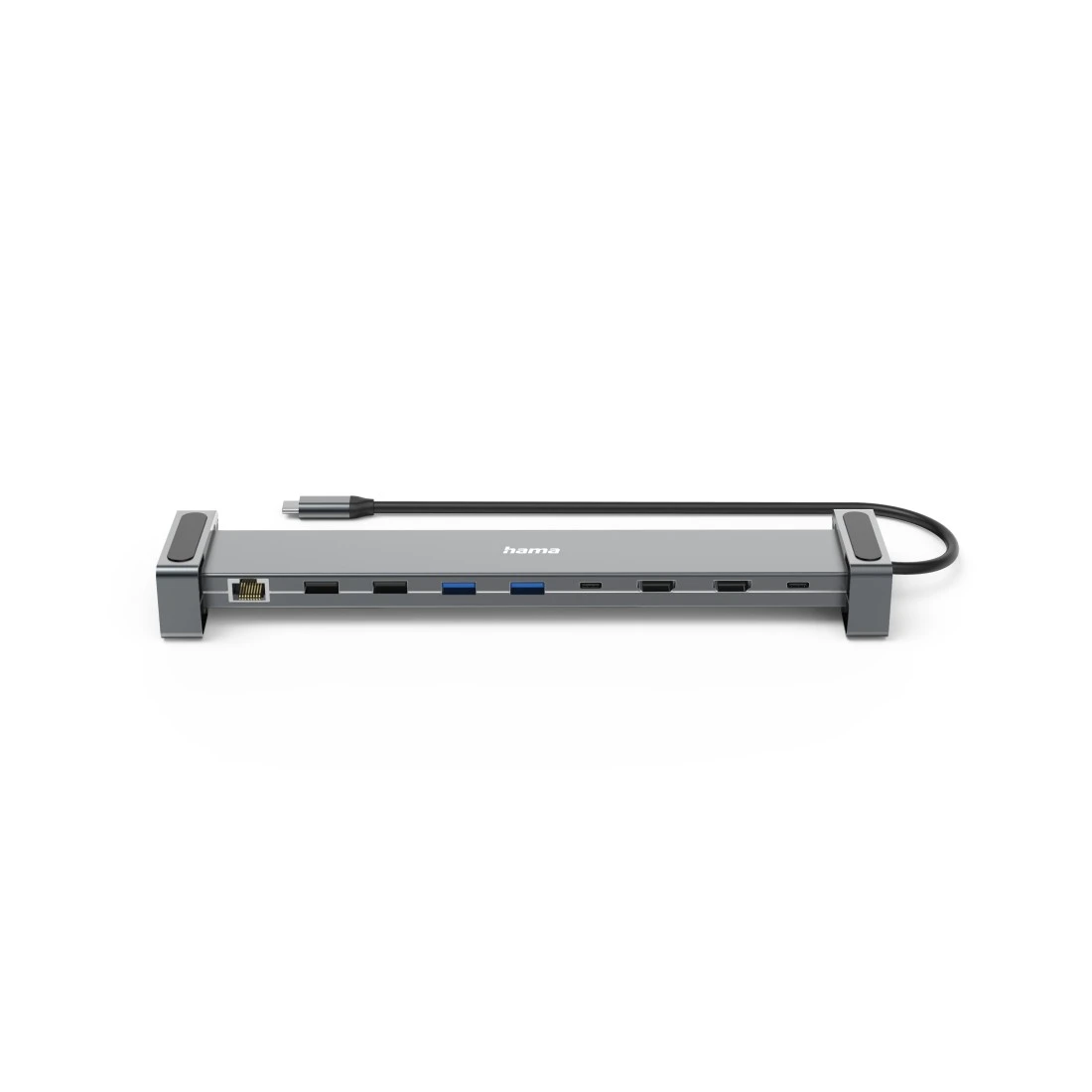

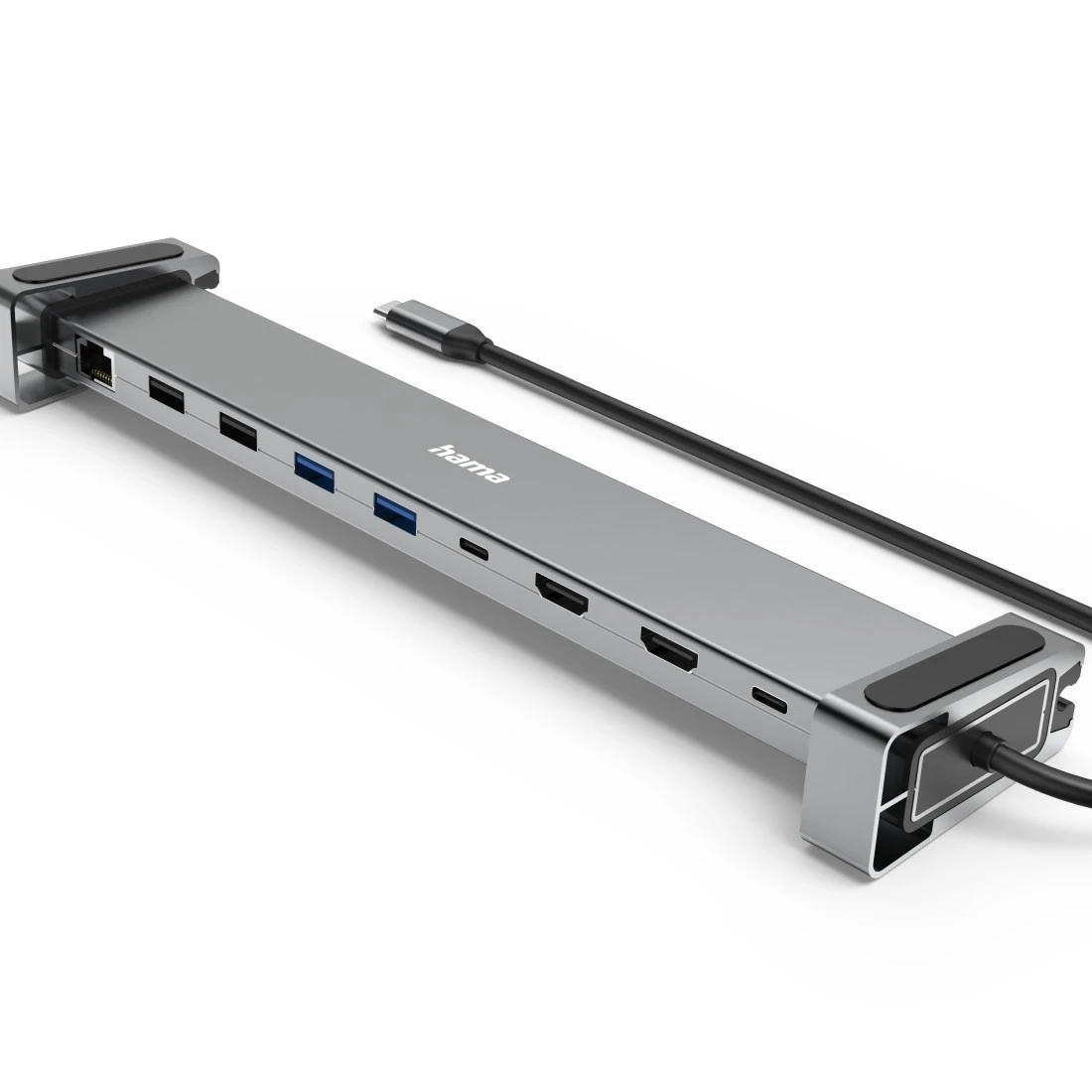

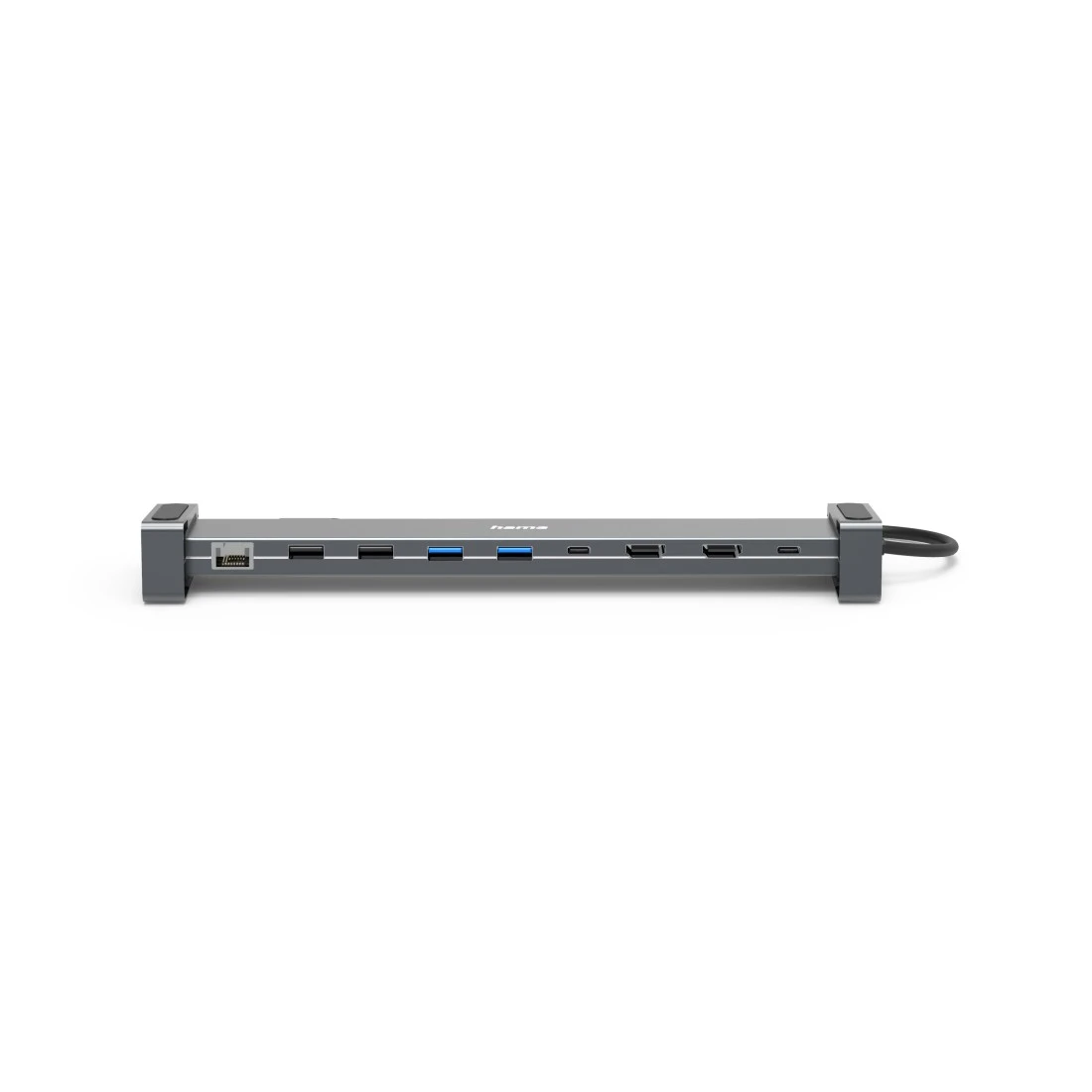

Connections: - 4 x USB-A: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C data: for e.g. external hard drive, USB stick, mouse, keyboard, printer
- 1 x USB-C power: for e.g. PD charger, PD power supply unit, PD power pack
- 2 x HDMI™: for connection to an e.g. monitor, TV or projector
- 1 x LAN/Ethernet: for e.g. cabled Internet / network connections
-
What's in the Box

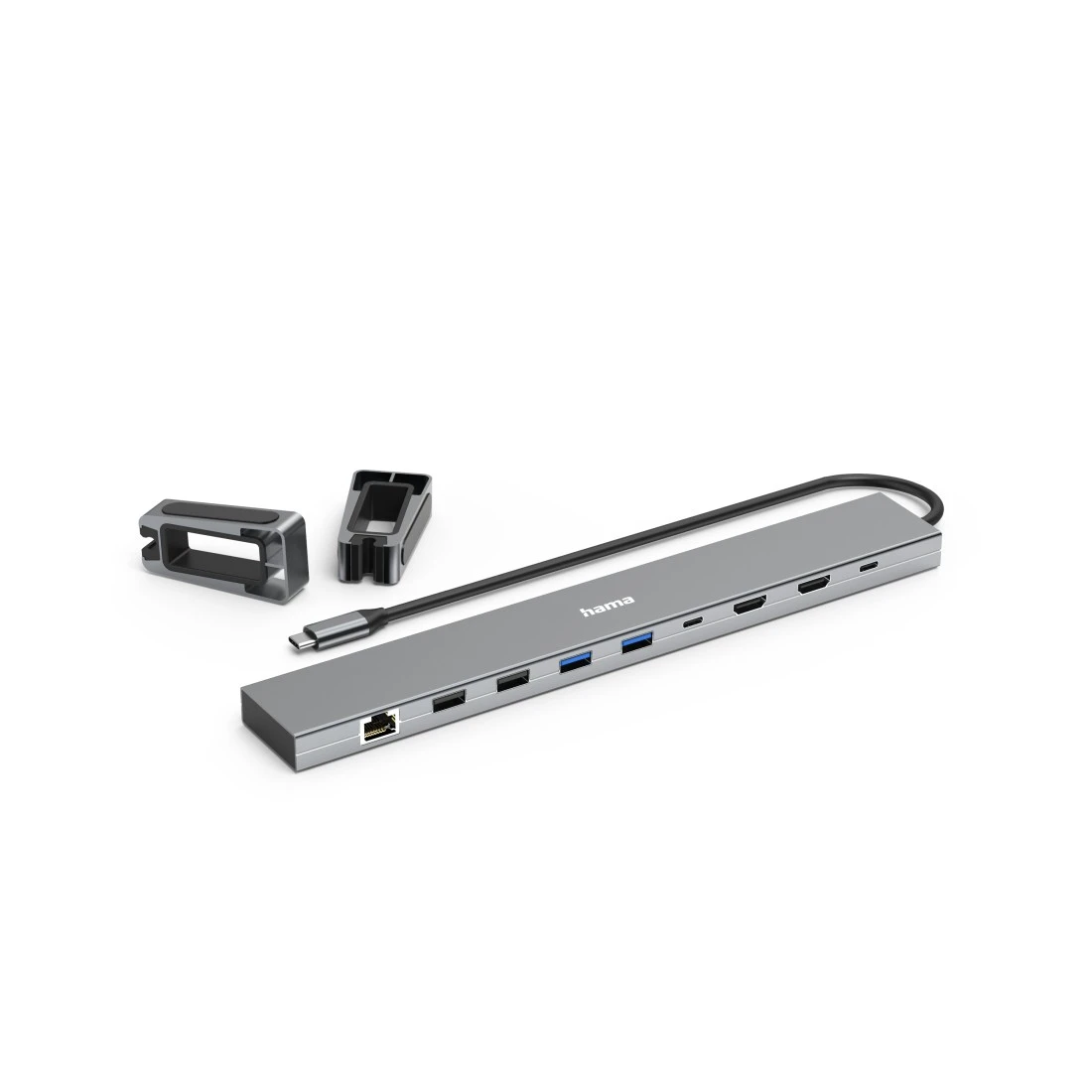

- 1 USB-C docking station
- 2 bases
- 1 operating manual
-
System Requirements
- Operating system: Windows 11/10 and Mac OS 10.8 upwards
To use the charging function over USB-C, the device must support USB Power Delivery (USB PD) or Thunderbolt 3/4.
To use the monitor function over HDMI™, the device must support DisplayPort Alternate Mode (DP Alt Mode), Thunderbolt 3/4 or USB4.
The MST function over HDMI™ works only in connection with current Microsoft Windows operating systems.
- Operating system: Windows 11/10 and Mac OS 10.8 upwards
-
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Warranty
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00200145 "Connect2Office Basic V2" USB-C Docking Station, Feet, 9 Ports: 2 Years Warranty, commercial Usage also
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
