Mains Adapter

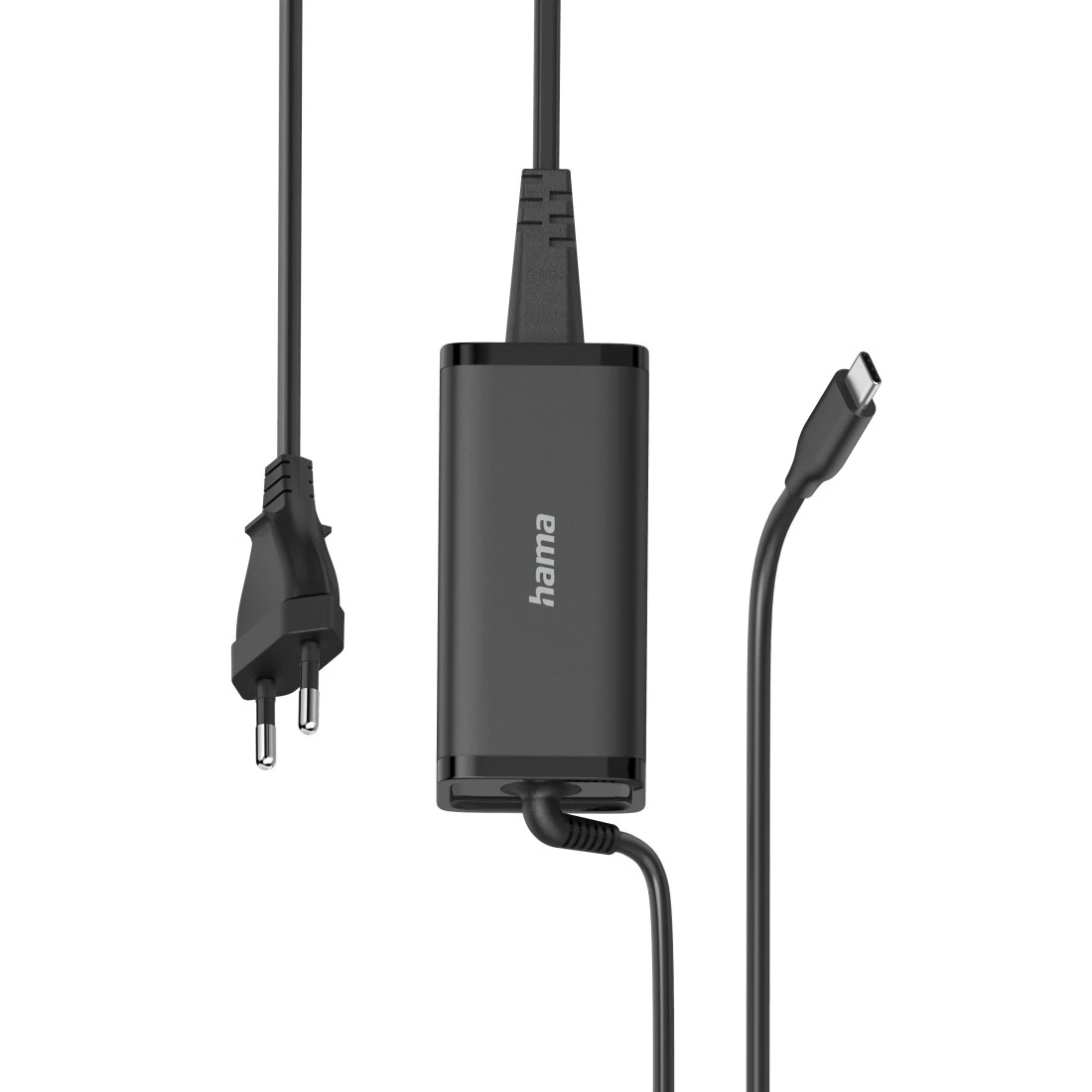

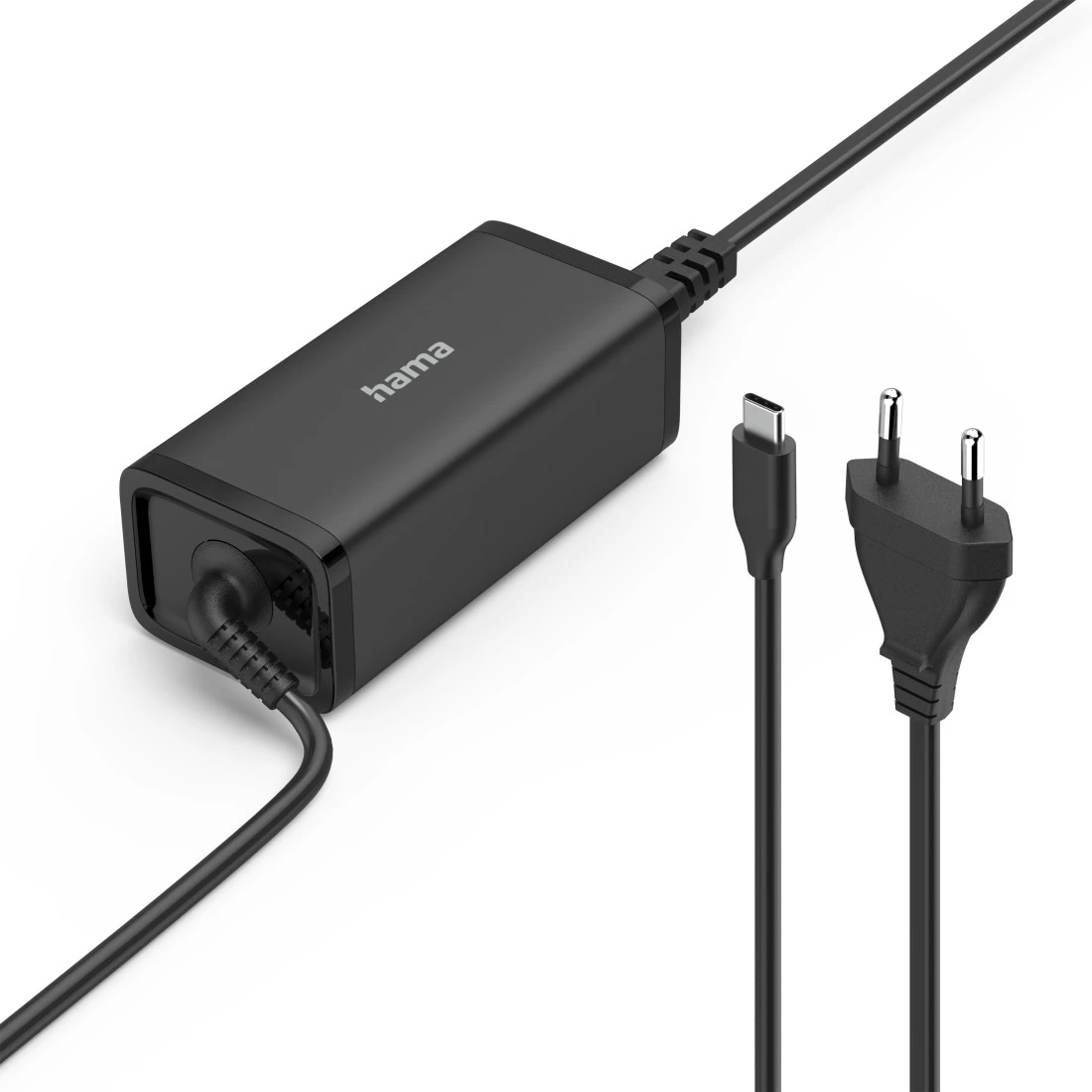

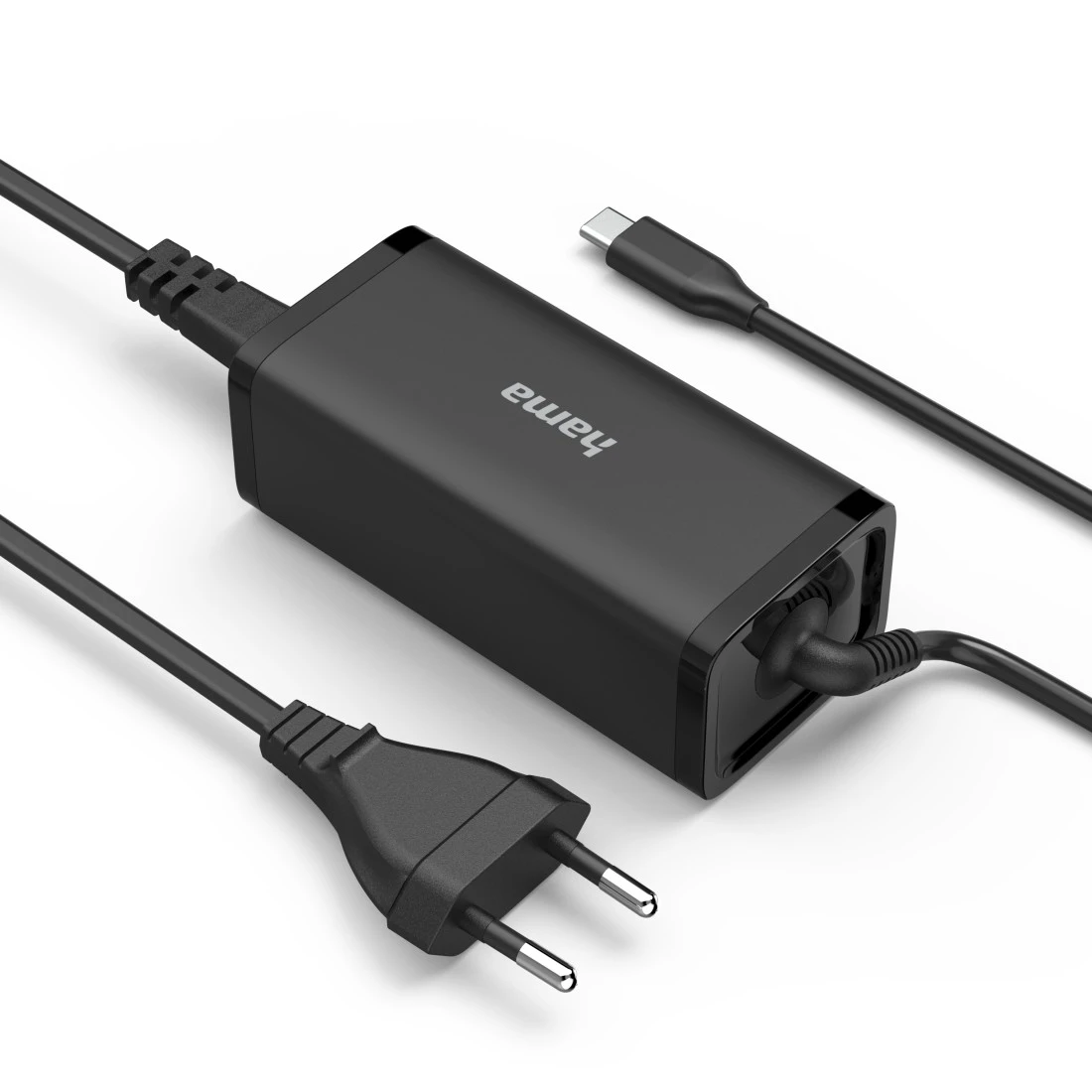

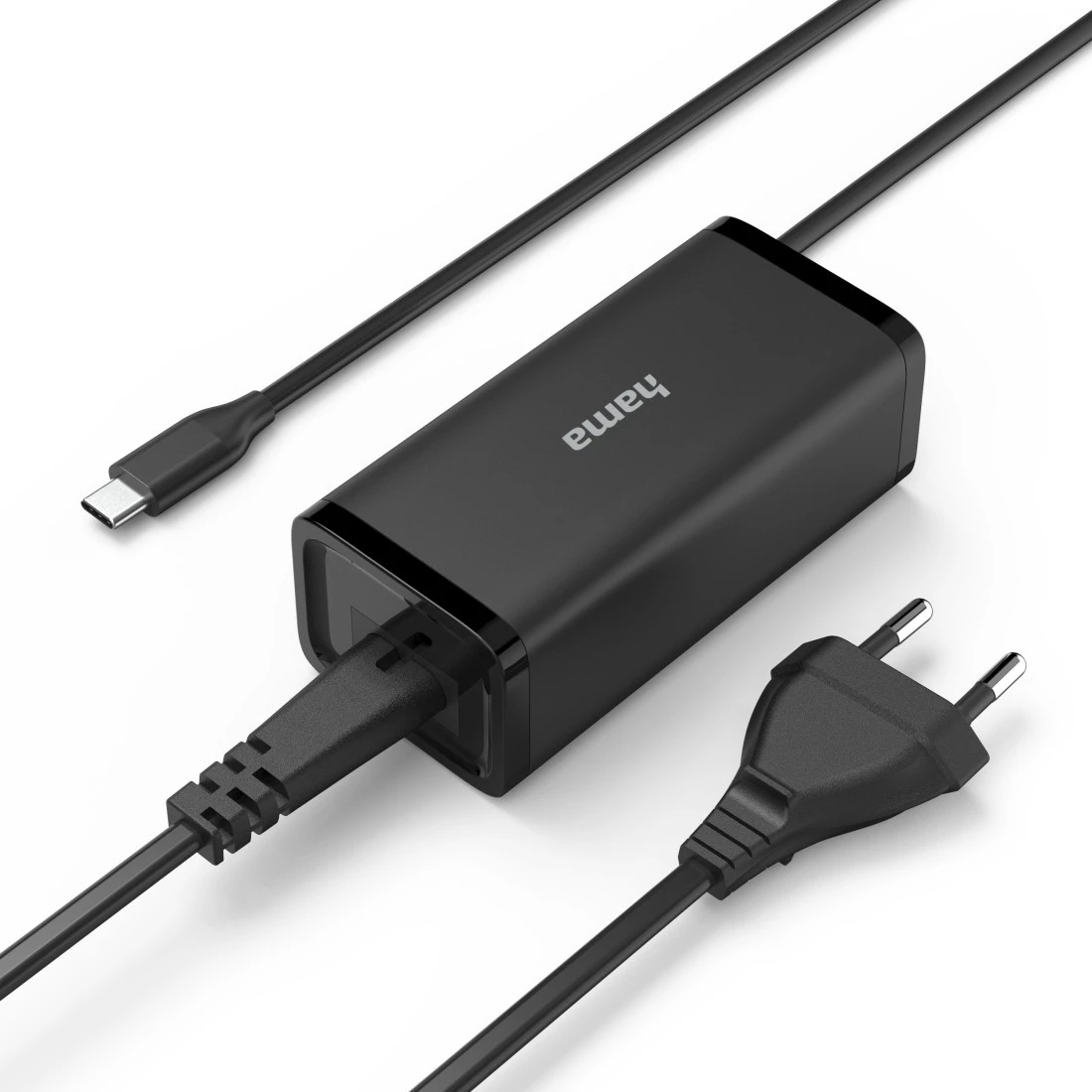

Hama Universal USB-C Notebook Power Supply Unit, GaN, Pwr Del. (PD), 5-20V / 100W

00200024

Compact, powerful, compatible: the 100 Watt GaN power supply unit delivers power for laptops, tablets and other devices - efficient, easy and reliable. No more charging breaks and half-full batteries - simply plug in and get full power wherever you are. A power supply unit that keeps up.

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

High quality

High-quality workmanship, power and safety

Components made from gallium nitride (GaN)

Powerful GaN technology: super-efficient with low heat development and all in a compact and lightweight design made possible by components made from gallium nitride

Efficient and optimized charging

The integrated IC automatically detects connected devices for efficient and optimized charging

Saves the battery during the charging process

Optimized charging process saves the battery thus extending its service life

USB-C plug: can be used on both sides

Easy and quick connection thanks to the USB-C plug that can be used on both sides

Usable all over the world

Mains supply of 100V-240V suitable for worldwide use in conjunction with a country-specific adapter

Hook and loop cable tie

Hook and loop cable tie enables good cable management without tangled cables

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour Black
    Productline Essential Line
    Shade of colour Black
    Connectivity (Connection)
    Compatible devices Laptop/ Smartphone/ Tablet
    Compatible manufacturers Acer/ Apple/ Asus/ Dell/ Dynabook/ Fujitsu/ Google/ HP/ Huawei/ Lenovo/ MSI/ Medion/ Microsoft/ Nintendo/ Packard Bell/ Samsung/ Trekstor/ VAIO
    Connection USB-C-plug
    Mains Connection Euro Plug
    Power connector plug type Euro Plug, Type C (CEE 7/16)
    Electrospecific Properties
    Charge Technology Power Delivery 3.0
    Input Voltage Range from/to 100-240 V
    Notebook input voltage 5-20 V
    Output Voltage 5 V - 20 V
    Protection circuit Overload Protection/ Short circuit protection
    Physical Properties
    Power supply voltage setting Automatic
    Special Feature Velcro cable ties
    Type Notebook Power Supply
    Size & Weight
    Cable length input 1.2 m
    Cable length output 0.95 m
    Depth (Body) 4.8 cm
    Height (Body) 3.8 cm
    Weight 455 g
    Width (Body) 9.4 cm
    Energy
    Max. Output Current 5 A
    Max. Output Power 100 W
    Power 100 W
    Power Plug Euro Plug
    Power Supply 100 - 240 V
  • More product information
    • Replacement for lost or faulty original power supply units and also ideal as a second power supply unit for the office, for travel or for the home
    • Ideal for all devices that are charged via USB-C, e.g. Macbook, notebook, tablet, smartphone, power pack, console
    • USB Power Delivery is also known as "USB PD"
    • Compatible with Thunderbolt 3/4 (lightning symbol)
  • What's in the Box
    • 1 universal USB-C notebook power supply unit

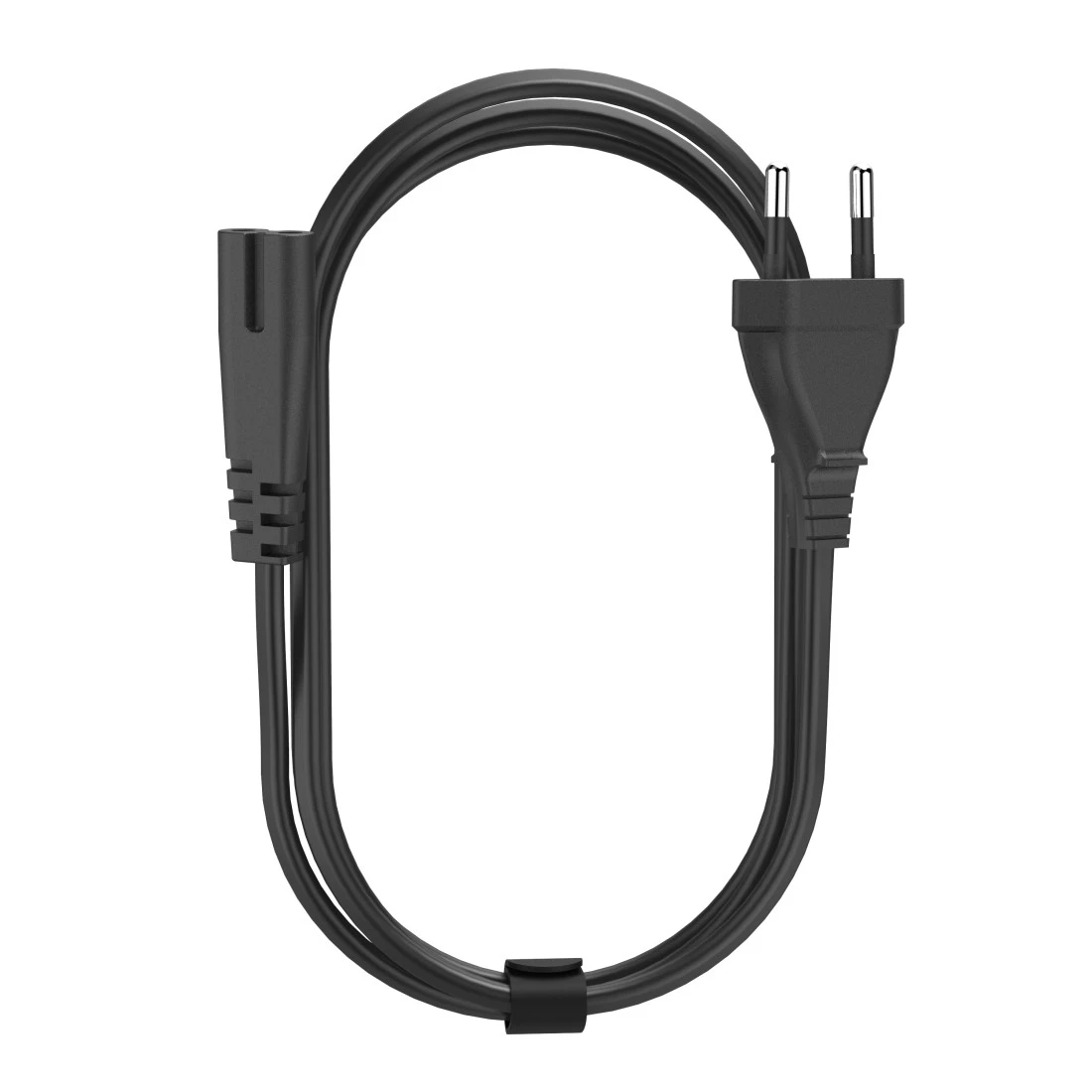

    • 1 mains cable
    • 1 operating manual
  • Note for Consumers

    Through communication between the terminal device and charger, this power supply unit always delivers the correct power to charge your terminal device as quickly as possible, in an optimised way and efficiently.

  • Manufacturer information
    Hama GmbH & Co KG, 86652, Monheim, https://hama.com
  • Warranty
    Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00200024 Universal USB-C Notebook Power Supply Unit, GaN, Pwr Del. (PD), 5-20V/100W: 2 Years Warranty, commercial Usage also
    This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
    If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
    The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
    Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.

    In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:

    Hama GmbH & Co KG
    Dresdner Str. 9
    86653 Monheim
    Germany

    We would ask you to appreciate that Hama GmbH & Co KG may reject the
    warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.

    In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.

    Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.


    Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
